> Multi-Axle Feedthrough

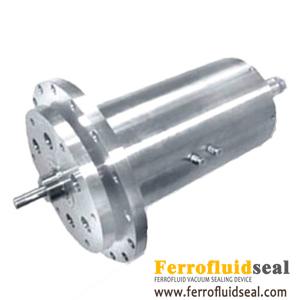

Tri-Axle Ferrofluid Vacuum Sealing Feedthrough
- Vacuum Degree :10 e-6 Pa
- Leakage Rate :10 e-12 Pa·m3·s-1
- 3 coaxial shafts,flange mounting
- with water cooling ports
- Product description: Tri-Axle ferrofluid vacuum sealing feedthrough with 3 coaxial shafts. Features vacuum degree 10 e-6 Pa, leakage rate 10 e-12 Pa·m3·s-1, high performance magnetic fluid vacuum seal with three coaxial s
Product introduction
Tri-Axles (3 shafts) Single Flange Ferrofluid Feedthrough Vcuum Sealing
|
Main Specifications: |
|
|
Vacuum Degree : |
10-6 Pa |
|
Leakage Rate : |
10-12 Pa·m3·s-1 |
|
Pressure Resistance : |
0.5 MPa (5bar),3Mpa max |
|
Temperature Range : |
0-80℃ (After water cooling) |
|
Sealing Material : |
Non-active Gas |
|
Shell Material : |
Non-Magnetic Permeability Stainless Steel |
|
Axle(Bush) Material : |
Magnetic Permeability Stainless Steel |
|
Shell Material |
Stainless steel or Aluminum |
|
Water Cooling : |
With |
Axle(Shaft) diameter size can be customized made from 10mm to 100mm
We will design the feedthrough as per your mounting sizes and performance requirements.

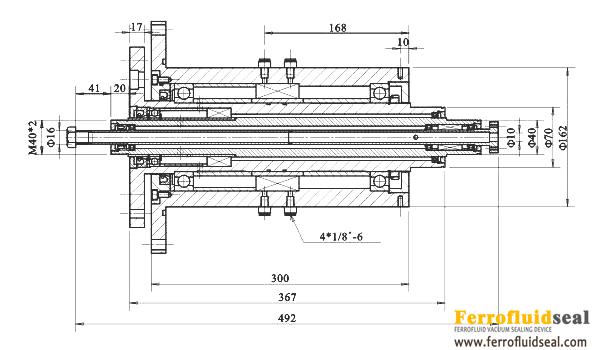

A samples drawing for reference below:
