> Multi-Axle Feedthrough

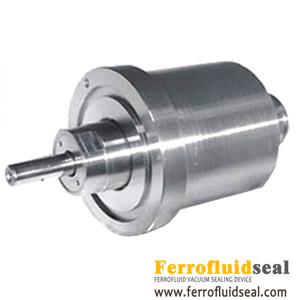

Dual Axle Ferrofluid Vacuum Feedthrough Seal Device
- Vacuum Degree :10 e-6 Pa
- Leakage Rate :10 e-12 Pa·m3·s-1
- Solid axle,Flange mouting
- without water cooling
- Product description: Dual axle ferrofluid vacuum feedthrough seal device with 2 coaxial shafts. Features vacuum degree 10 e-6 Pa, leakage rate 10 e-12 Pa·m3·s-1, high performance magnetic fluid vacuum seal with dual coaxi
Product introduction
Dual Axles (2 shafts) Single Flange Ferrofluid Vacuum Sealing Feedthrough
|
Main Specifications: |
|
|
Vacuum Degree : |
10-6 Pa |
|
Leakage Rate : |
10-12 Pa·m3·s-1 |
|
Pressure Resistance : |
0.5 MPa (5bar),3Mpa max |
|
Temperature Range : |
0-80℃ |
|
Sealing Material : |
Non-active Gas |
|
Shell Material : |
Non-Magnetic Permeability Stainless Steel |
|
Axle(Bush) Material : |
Magnetic Permeability Stainless Steel |
|
Shell Material |
Stainless steel or Aluminum |
|
Water Cooling : |
Without |
Axles (Shafts) diameter size can be customized made from 10mm to 100mm
We will design the feedthrough as per your mounting sizes and performance requirements.

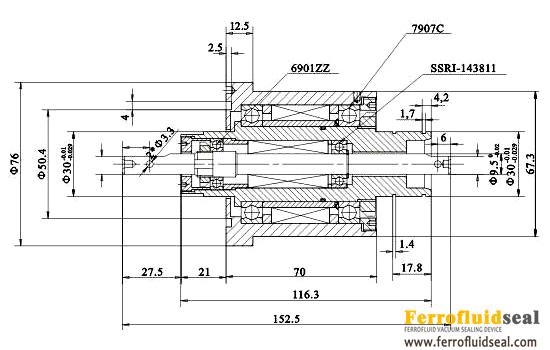

A sample drawing below for refernce:
Applications
- Single Silicon Crystal Growth
- Sapphire Crystal Growth Furnace
- Vacuum Coating Equipment
- Ion Implanter
- PECVD/CVD Equipment
- Vacuum Furnace
